Underwater accoustic element

Application Theory: The measurement machine of an underwater ultrasonic wave(sonar) is known for the purpose of navigation. The ultrasonic wave pulse is radiated in the sea, and the reflection wave from a target object is detected, and this is presence, measures the distance distinguishes the direction, and a kind of radar of the object. Piezocermic applied for underwater acoustic transducers contain both transmitters and receivers and use distance and directional data for communication, marine research ,undersea mapping and navigation.

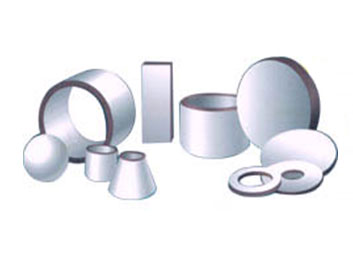

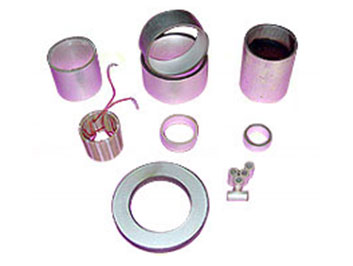

Designs Shape:  Hemisphere, Bowl, Segment, Tube, Block


Character

  • Good stability
  • High sensitivity
  • Accurate measuring



Typical Applications

  • Hydrophones
  • Projectors Transducer
  • Fish-finder
  • Sonar

BOCHUANG Standard Hemisphere Specification

BC P/N

Material

Diameter (mm)

Wall Thickness (mm) Resonant Frequency (kHz) Static Capacitance (pf) Resonant Impedance (ohm)

BCCH152.5-14.5KHZ

PZT-4D

152.5+/-0.4

5.0+/-0.15 14.5+/-3% 87000+/-10% <=10

BCCH102-35KHZ

PZT-4D

102+/-0.2

3.5+/-0.1 22+/-3% 44000+/-10% <=10

BCCH62.5-35KHZ

PZT-4D

62.5+/-0.2

3.0+/-0.1 35.5+/-3% 22000+/-10% 1-5

BCCH25.4-98KHZ

PZT-4D

25.4+/0.15

1.0+/-0.1 98+/-3% 3000+/-10% <=10

BCCH12.7-188KHZ

PZT-4D

12.7+/-0.15

1.5+/-0.1 188+/-3% 1500+/-10% <=15

BCCH6.35-390KHZ

PZT-4D

  6.35+/-0.10

0.7+/-0.1 390+/-3% 550+/-10% <=10

BCCH25.4-105KHZ

PZT -5A

25.4+/-0.15

3.2+/-0.1 105+/-3% 2700+/-10% <=10

BCCH12.7-102KHZ

PZT-5A

12.7+/-0.15

1.25+/-0.1 102+/-3% 2800+/-10% <=10

Cutstomer Design
Other type and shapes (Hemisphere, Bowl, Ball) piezoceramic parts could be OEMed as customer’s design and application request.
